The Max S100 series is designed with a focus on Total Cost of Ownership (TCO), making it the most cost-efficient model in the Max series through improved maintainability and power consumption management. A robust chassis design enhances longevity in demanding shared environments, while optimized ergonomics and weight improve portability for both operators and end-users.
Max S100
Infinite Possibilities, Proven Performance
Product Vision

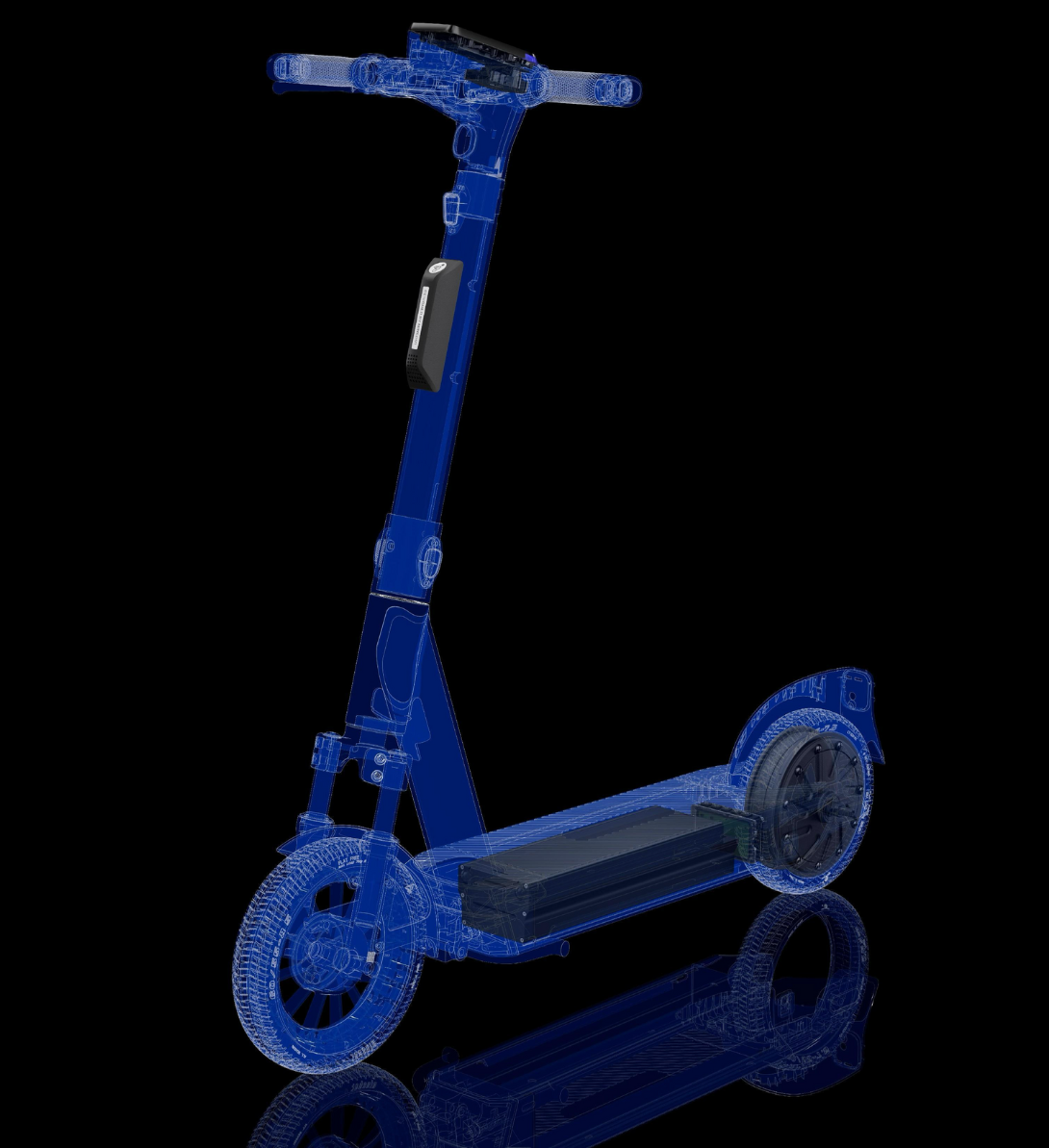

Max S100 Structure
2 in 1 Indicators
G3Sg IoT
High-strength Aluminum Stem
Front Suspension
11.5” Honeycomb Tire
Dual Side Kickstand
Full-covered Rear Fender
400W Powerful Motor
Charger Port
10.5” PU Filled Tire
36V 551Wh or 1033Wh Battery
Controller
LCD Dashboard
LCD Dashboard
Status Light
Built For Operational Efficiency
Extended Mileage and Reduced Battery Swapping
With its 551Wh battery, the S100 optimizes energy consumption by reducing standby power to just 0.75W and enhancing energy usage during rides. This results in a significant increase in operational mileage, reaching 55km, and reduces the frequency of battery swaps.
Built For Operational Efficiency

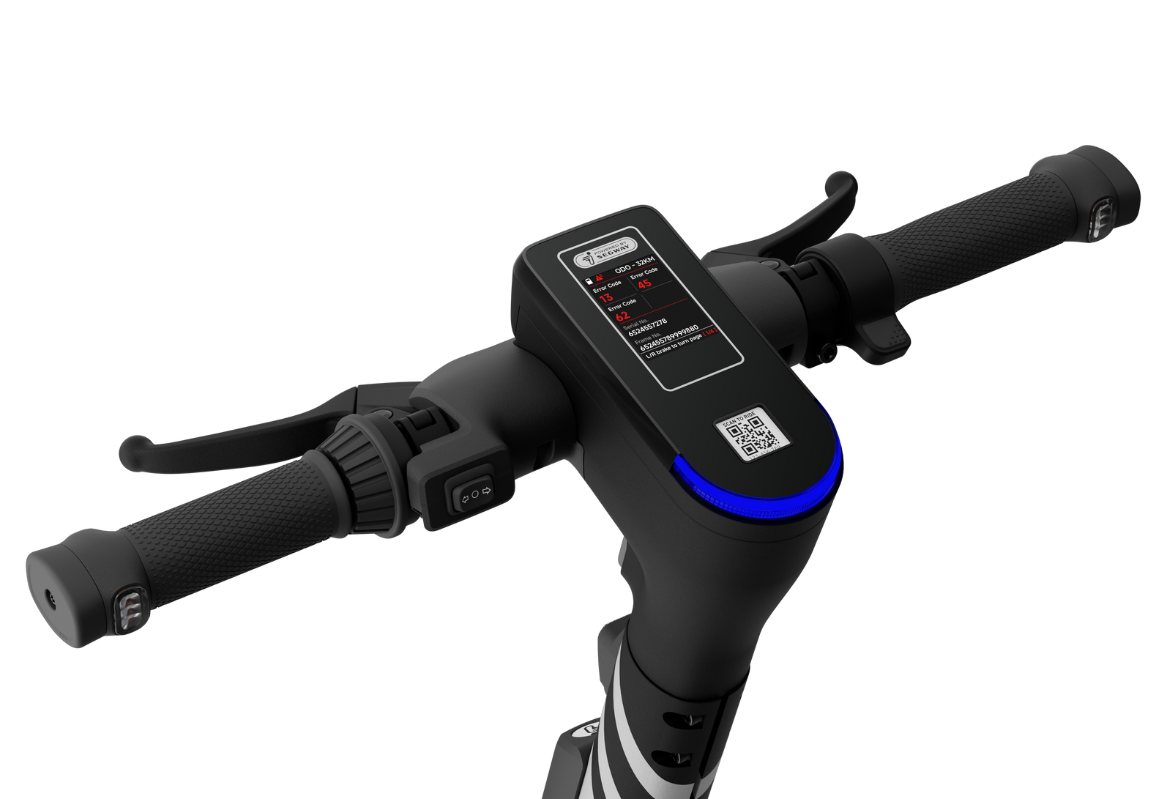

Enhancing Operational Efficiency with the LCD Display

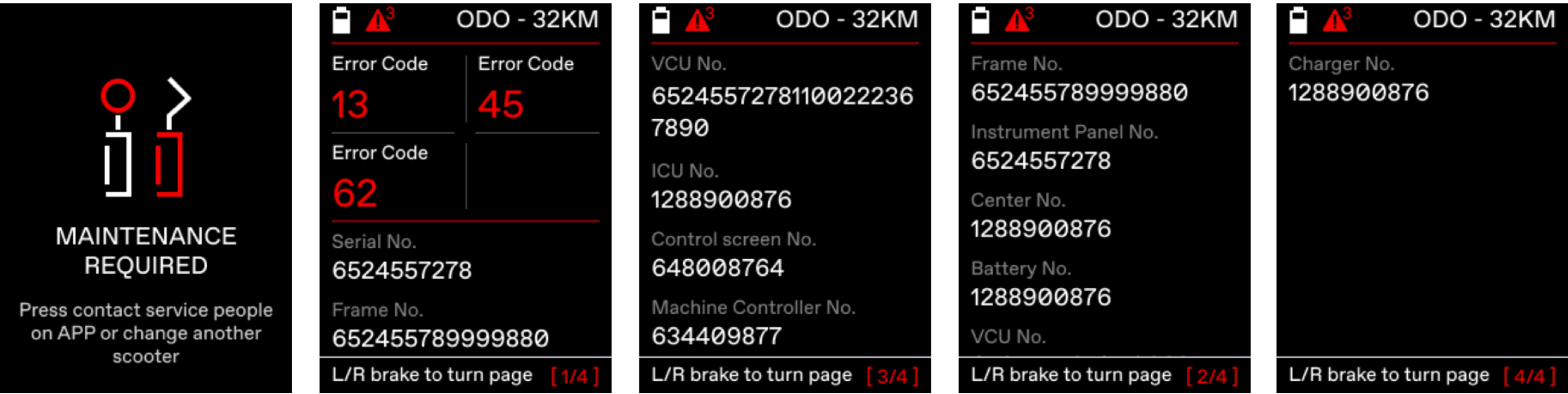

The 2.4-inch high-brightness (1300 nit) color LCD display boasts a resolution of 240×320 and includes Bluetooth connectivity. Its specialized maintenance interface enables effective monitoring and display of device status, including warning alerts, firmware version updates, error messages, and more.
Built For Operational Efficiency

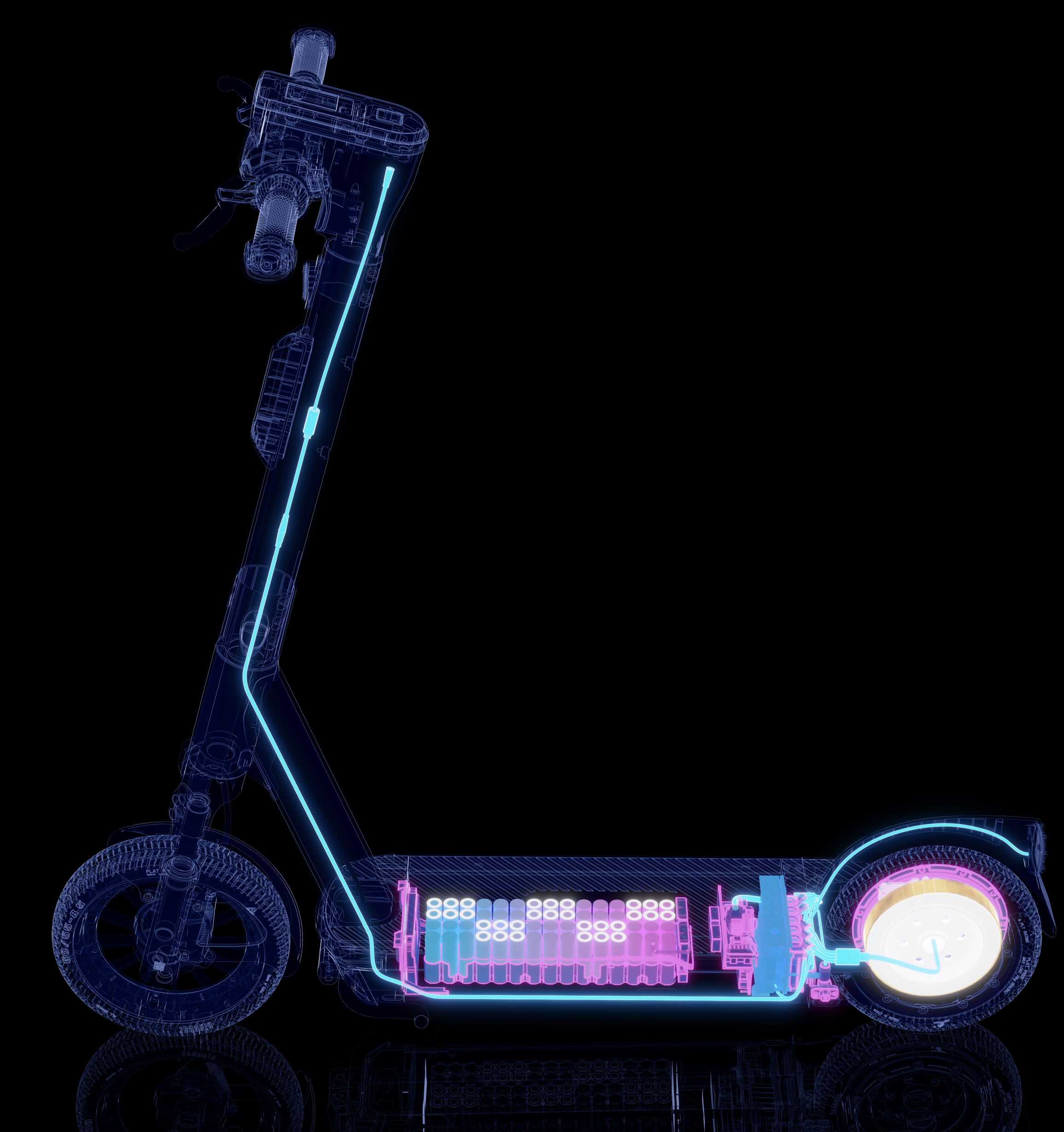

36V+CAN BUS Enables Best-in-class Performance
- CAN bus communication transfers data 8 times faster* and reduce the number of pins of the main control bus cable from 8 to 5.
*Compared to UART communication
Built For Operational Efficiency

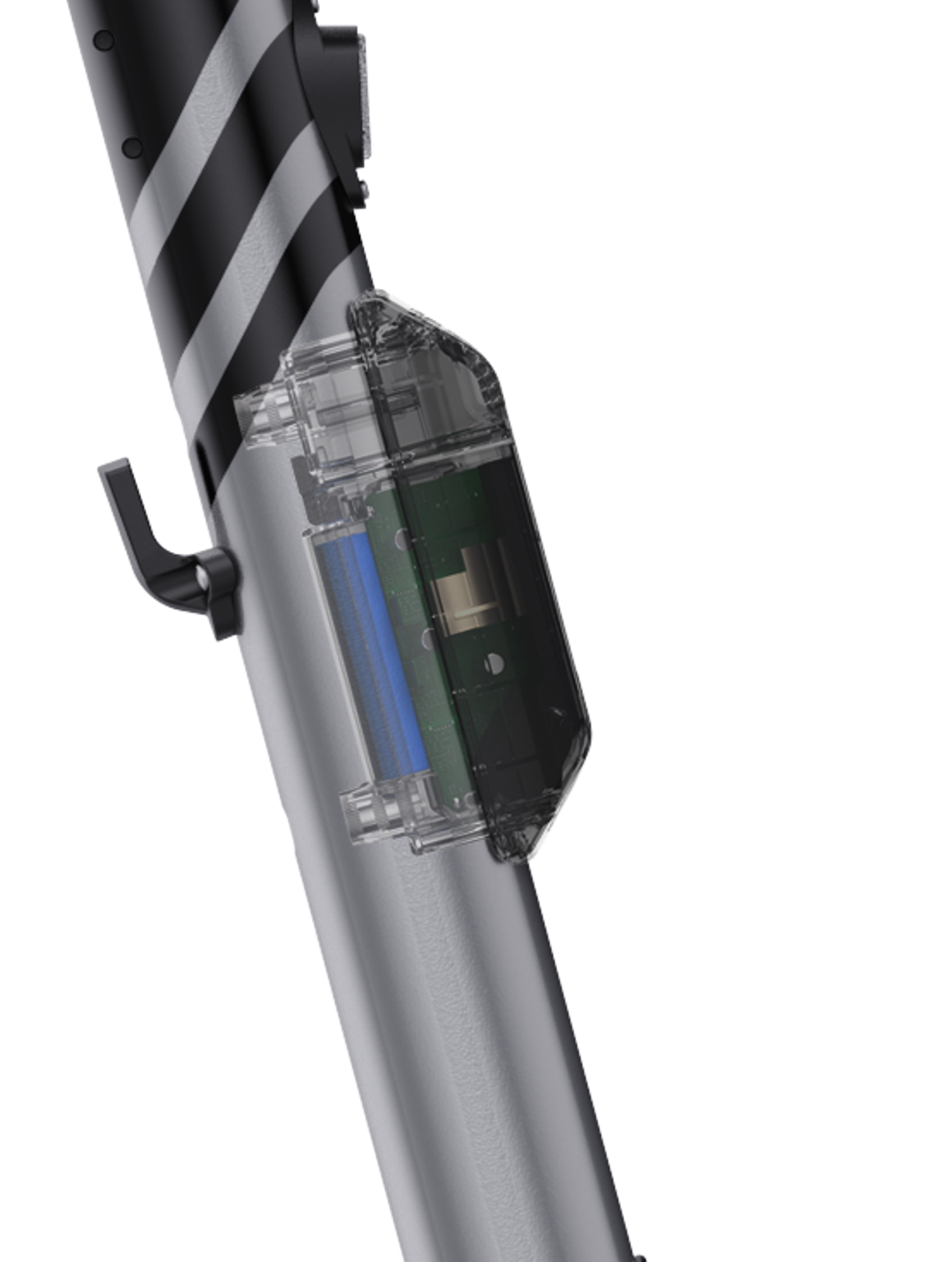

Gen-3Sg IoT Technology for Smarter Operations
- High Precision Positioning
- Onboard Geofence
- AVAS ( Acoustic Vehicle Alerting System )
- Longer Standby Time
- Potting Technology Enables an IPX7 Waterproof Rating
Built For Safety
Secure and Stable on Diverse Surfaces
The front and rear PU-filled tires offer secure and stable rides. With an approximately 11.5-inch front tire and a 10.5-inch rear tire, the scooter can easily navigate obstacles and uneven roads. These maintenance-free, all-season tires are durable, ideal for all road conditions and contribute to rider safety.
Built For Safety

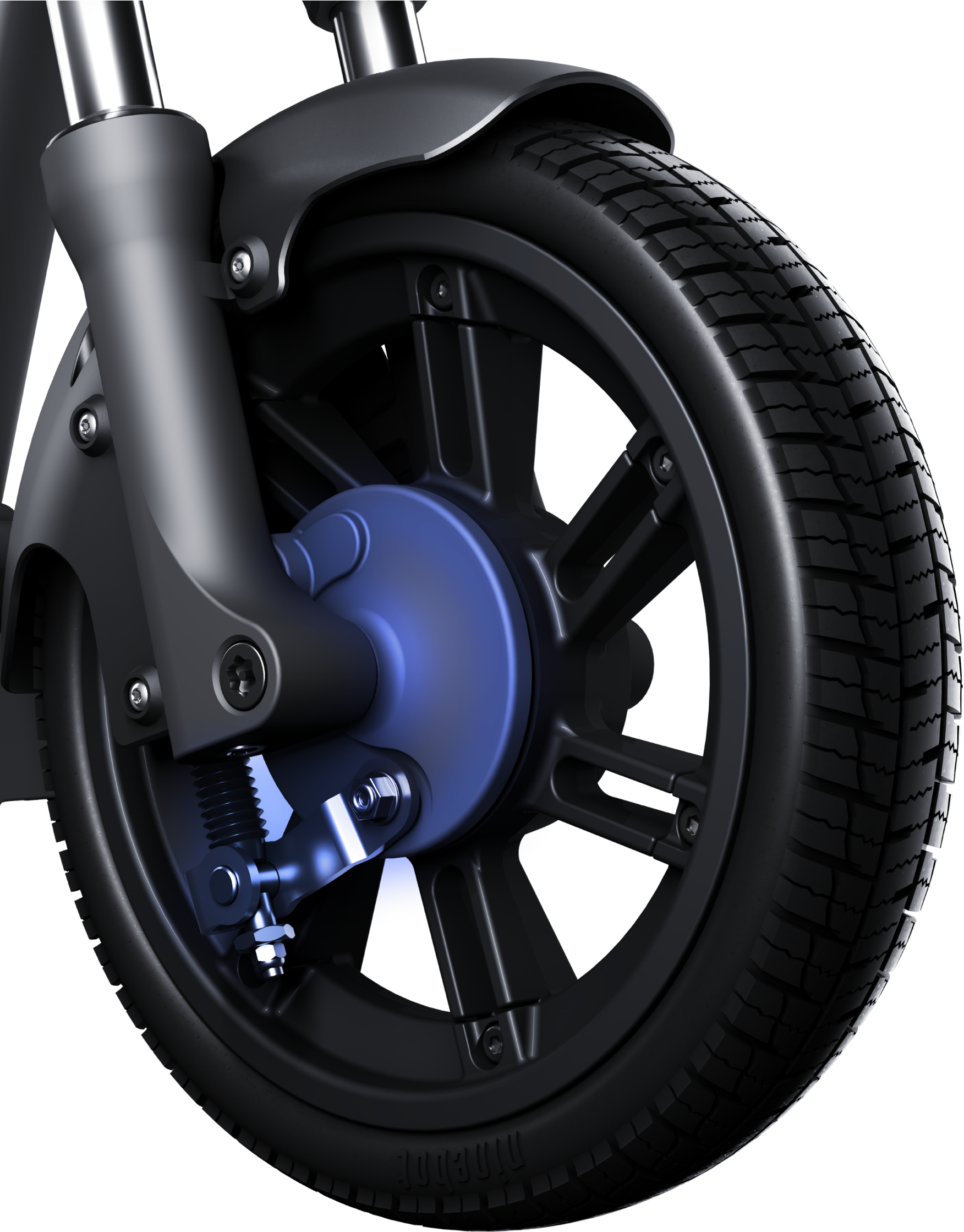

Reliable Drum Brakes for Enhanced Safety
The enclosed drum brake system delivers powerful stopping performance. Its protective design shields against debris, offering reliable operation and extended durability, making it ideal for shared micro-mobility fleets.
Built For Safety
Stay Visible, Stay Safe
The S100 features front and rear indicators for visibility in various weather and lighting conditions. The high-brightness LED headlight helps make the rider and vehicle visible from over 300 meters, exceeding DfT standards.
Built For User Experience

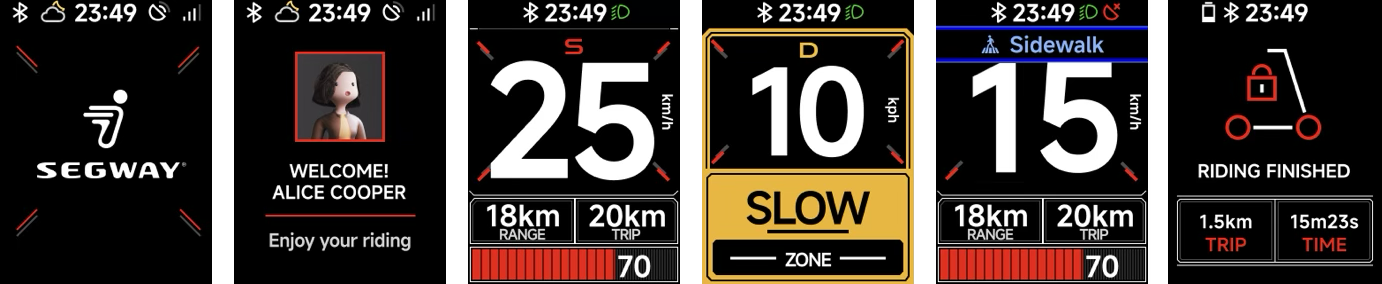

LCD Display Features for Enhanced User Experience
The 2.4-inch high-brightness (1300 nit) multi-information color LCD display provides clear, real-time riding information and navigation support, enhancing the overall user experience.
Built For User Experience
Comfort on Various Terrain
Front dual suspension system provides riders with enhanced stability and control even when navigating everyday bumps and uneven road conditions, ensuring a smooth and comfortable riding experience.
Built For User Experience
Elevate Every Ride with High-Performance Motor
The S100 is designed to deliver a powerful riding experience with its 400W rated power motor. This high-performance motor allows riders to tackle 14% slopes at a speed of 15 km/h with a 75 kg load (Approx. 8°), providing smooth and efficient acceleration for an effortless riding experience.
Built For User Experience

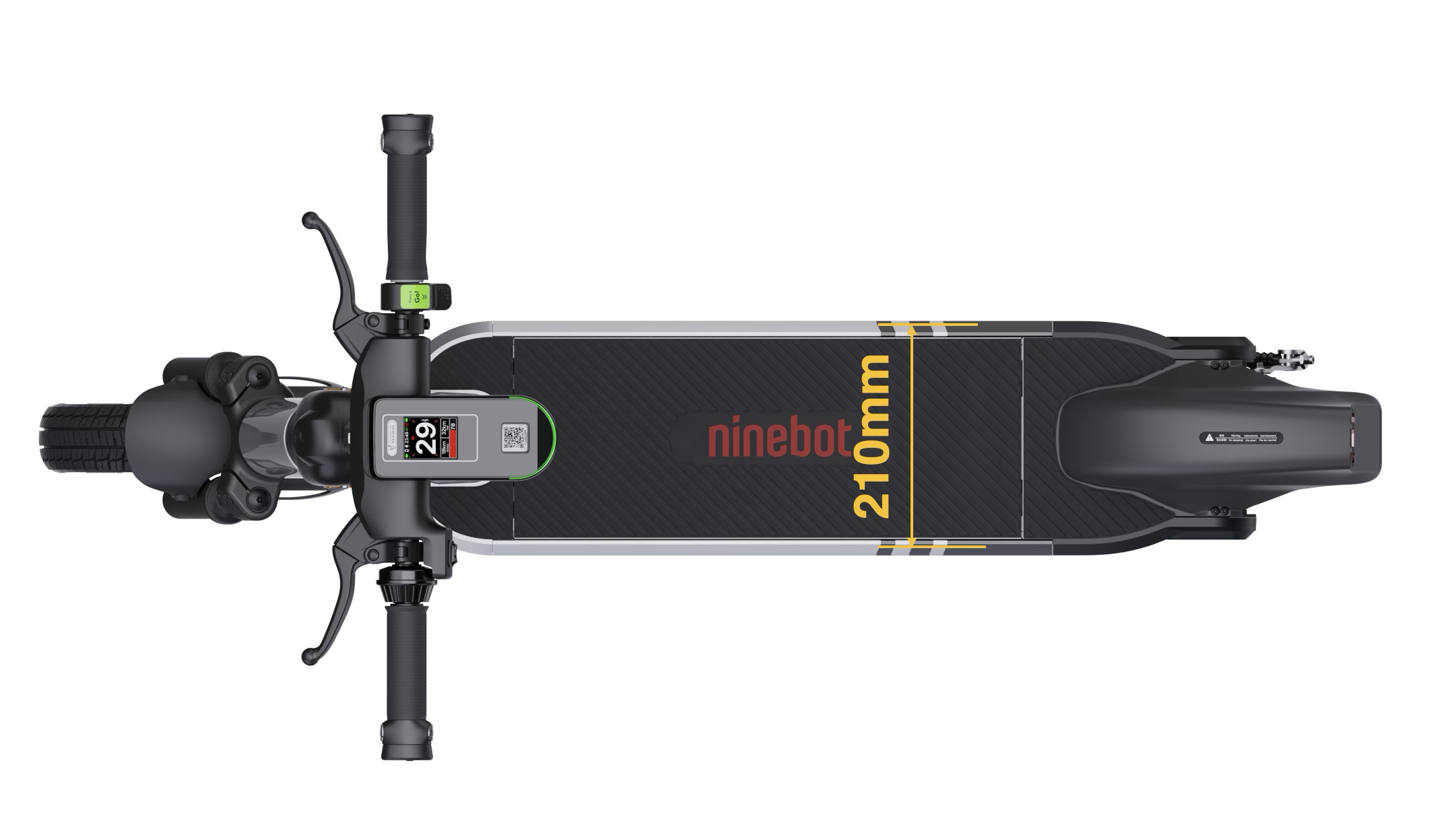

Enhance Safety and Comfort with a Wide 210mm Foot Pad
Built For Durability

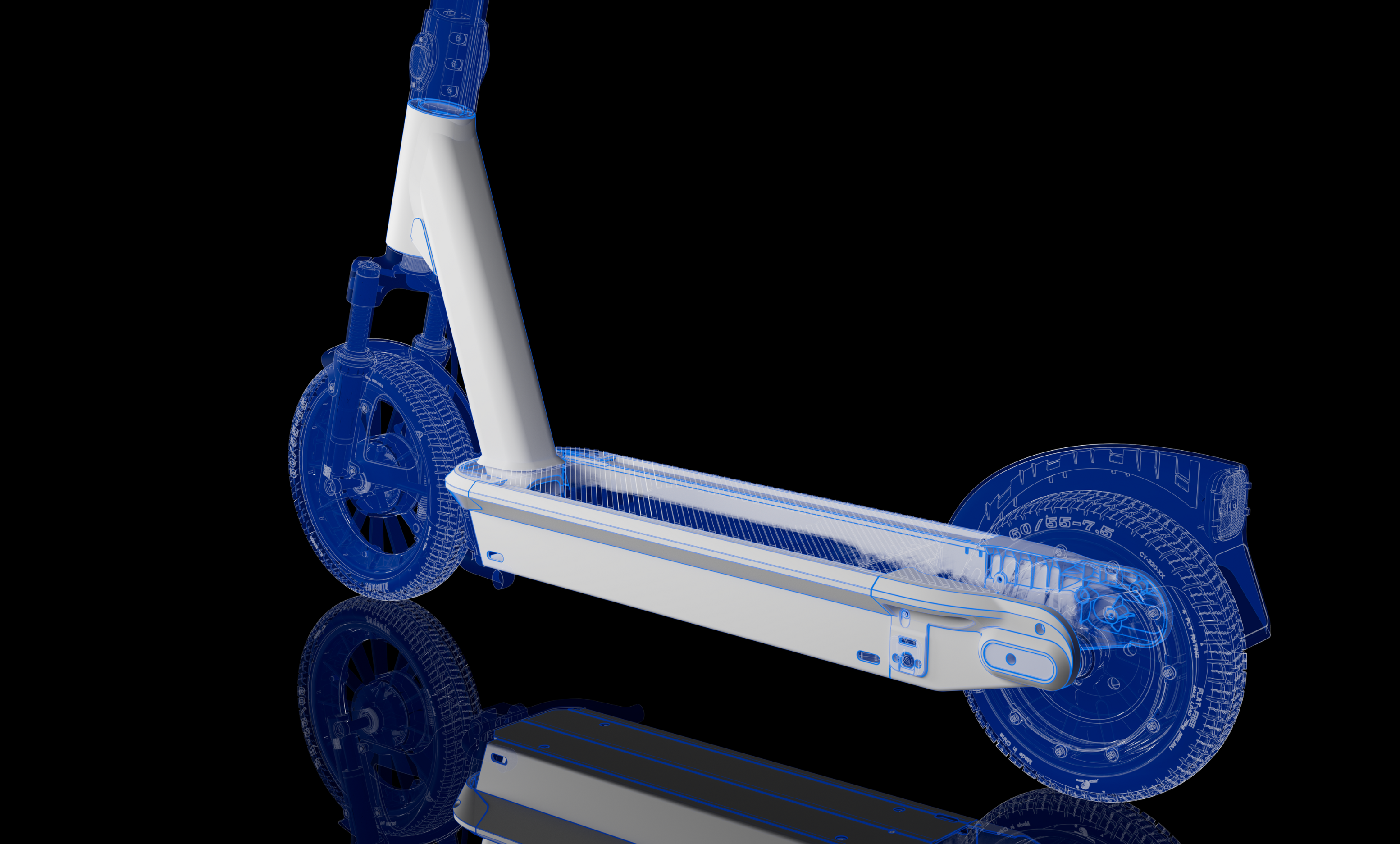

Reinforced and Lightweight Frame Design
- Anti-theft battery compartment featuring a reinforced casing and innovative structure to effectively combat theft and vandalism.
- Ergonomic hidden handle streamlines single-operator retrieval and rebalancing.
- Rigorous tests validate: withstood 1 million vertical dual-fork vibration cycles and 3,000 drop fatigue cycles from a 15 cm height.
Vehicle IPX5
Exceptional Waterproof Rating
Boosts Vehicle Durability in Use
Built For Durability
High-Strength Stem for Safety and Reliable Ride
The S100 features a 7000 series aluminum stem with an optimized structure that has passed rigorous testing. It has been subjected to a thrust force of 600N over 1,000,000 times, offering the highest levels of safety and durability.
7000
Series Aluminum Stem
600N
Thrust Force
1M
Times of Test
Built For Easy Maintenance
Swappable Dashboard Design
Max S100
LCD Dashboard
Max S100L
Dual Independent Dashboards
Max S100X
Multi-function Dashboard
Built For Easy Maintenance
Simplify the Operation with Universal Battery Platform
The Universal Battery Platform streamlines fleet management with regular and high-capacity battery options compatible with all Max Series scooters. By integrating with multimodal fleets, it significantly reduces operational costs, offering a cost-effective solution for businesses.
Built For Easy Maintenance

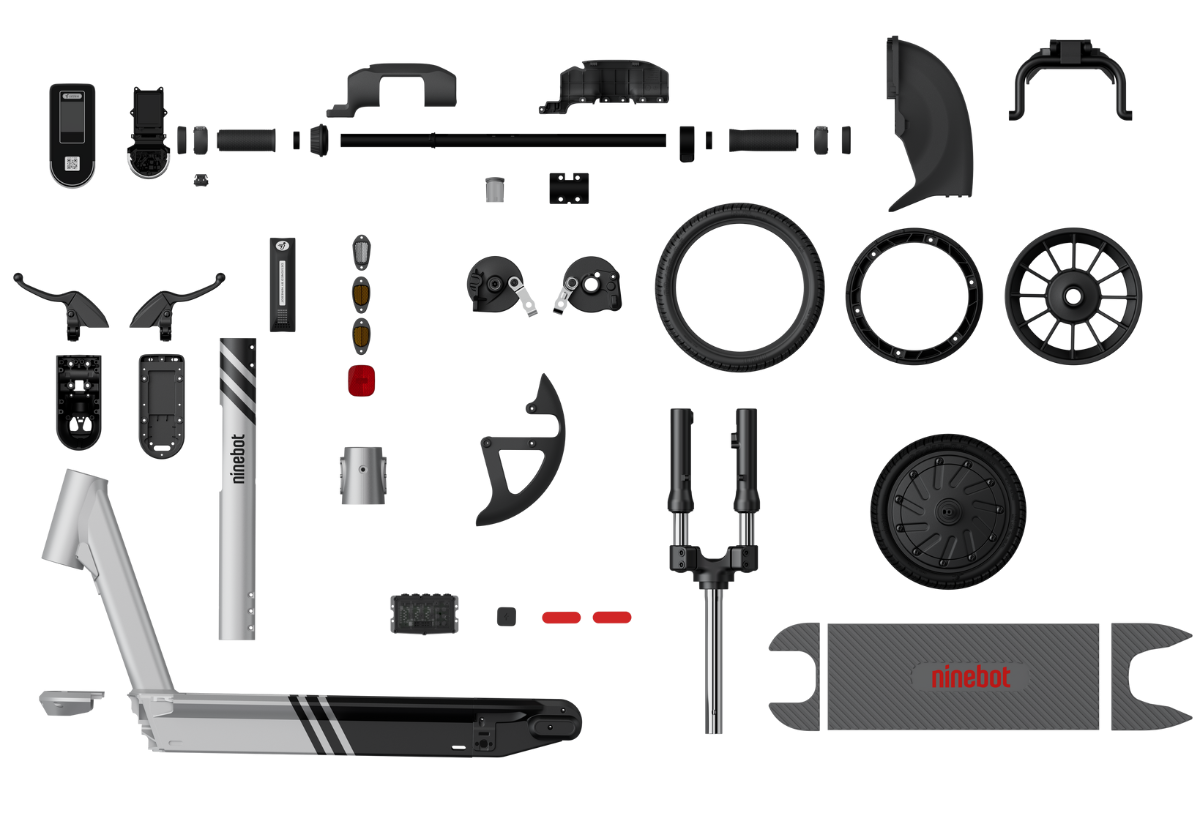

Efficiency Starts with Compatibility
The Max series offers exceptional component compatibility, ensuring optimal performance across models like the Max S100, Max S90L, Max Plus X, and others.
The S100 and Max Plus X share approximately 38% of their components. Key compatible parts include the battery, IoT module, wheels, tires, and more.
