Apex Series
Apex D110L
Product Vision
Building upon the continuous evolution of the Max series products, Apex D110L – the latest addition to our Apex product line – aims to establish a new standard in shared micromobility industry. Through cutting-edge product innovations and feature upgrade, our vision is to optimize the total cost of ownership to the next level, while redefining the benchmarks for road safety, operational efficiency, and user experience.
D110L Structure
Ring-shaped status light
High-strength IoT
High-strength aluminium frame
12 inch PU filled tire
46.8V 1147Wh Li-battery
Ring-shaped status light
High-strength IoT
High-strength aluminium frame
12 inch PU filled tire
46.8V 1147Wh Li-battery
Built For Operational Efficiency
Charge Less, Go Farther
The D110L is revolutionizing urban mobility with its advanced 46.8V 1147Wh battery. This high-capacity battery not only allows the D110L to travel up to 100 kilometers* on a single charge but also enhances operational efficiency by reducing the need for frequent battery charging and swapping.
100km Range*: 25℃, windless, 75kg weight, asphalt road, 16km/h, measured at a consistent speed.
Handle
Discharge port
Charge port
Battery level indicator
Battery Model
NFKF4825B
Dimension
378.2 × 147 × 81.5 mm
Cell model
INR21700-50GB
Weight
8.6 kg
Combination pattern
13S5P
Built For Operational Efficiency
Optimized Power Management to Minimize Battery Swaps
By reducing standby power to 0.85W and optimizing energy usage, the D110L achieves a remarkable increase in operational mileage, significantly reducing the frequency of battery swaps.
0.85
Standby Power
Built For Operational Efficiency
Enables Best-in-class Performance
- With higher voltage and optimized FOC, the 48V platform enables a more linear acceleration, while quieter and more powerful when in operation.
- CAN bus communication transfers data 8 times faster* and reduce the number of pins of the main control bus cable from 8 to 5.
*Compared to UART communication
Built For Operational Efficiency
Gen-3Sg IoT Technology for Smarter Operations
- High Precision Positioning
- Onboard Geofence
- AVAS ( Acoustic Vehicle Alerting System )
- Longer Standby Time
- Potting Technology Enables an IPX7 Waterproof Rating
Built for Safety
Enhanced Brake Durability and Performance
The drum braking system has undergone comprehensive design and material upgrades, delivering powerful stopping performance. Its protective design shields against debris, offering reliable operation and extended durability, making it ideal for shared micro-mobility fleets.
Built for Safety
Secure and Stable on Any Terrain
With 12-inch front and 10.5-inch rear PU-filled tires, the D110L can easily navigate over obstacles. These maintenance-free all-season tires are durable, making them ideal for all road conditions and ensuring the safety and reliability for riders.
Built for Safety
Stay Visible, Stay Safe
The D110L is equipped with front and rear indicators, a headlight, taillight for visibility in all weather and light conditions. Its high-brightness LED lights make vehicle visible from over 300 meters, surpassing DfT standards.
Built For User Experience
Cellphone Holder, NFC* and Wireless Charging* Design
The D110L is designed with user experience in mind, featuring a vertical cellphone holder, NFC* and wireless charging* capabilities. With the added convenience of wireless charging and the ability to unlock the vehicle via NFC card, cellphone, or Bluetooth, the D110L offers a seamless and user-friendly experience for riders. The vertical cellphone holder is compatible with most phones on the market, further enhancing the overall user experience.
*optional
Built For User Experience
Stay Informed with 360°Visibility
The ring-shaped status light enhances the user experience by providing users with clear and easy-to-understand color notifications for vehicle statuses.
Built For User Experience
Elevate Every Ride with High-Performance Motor
The D110L is designed to deliver a powerful riding experience with its 400W rated power motor. This high-performance motor allows riders to tackle 14% slopes at a speed of 15 km/h with a 75kg load, providing smooth and efficient acceleration for an effortless riding experience.
Built For User Experience
Comfort on Various Terrain
The front dual suspension system and 12-inch wheels provide riders with enhanced stability and control even when navigating everyday bumps and uneven road conditions, ensuring a smooth and comfortable riding experience.
Built For User Experience
Enhance Safety and Comfort with a Wide 204mm Foot Pad
The D110L features an expansive 415×204mm footpad that enhances rider safety and stability, offering ample space for both feet to be comfortably placed.
Built For Durability

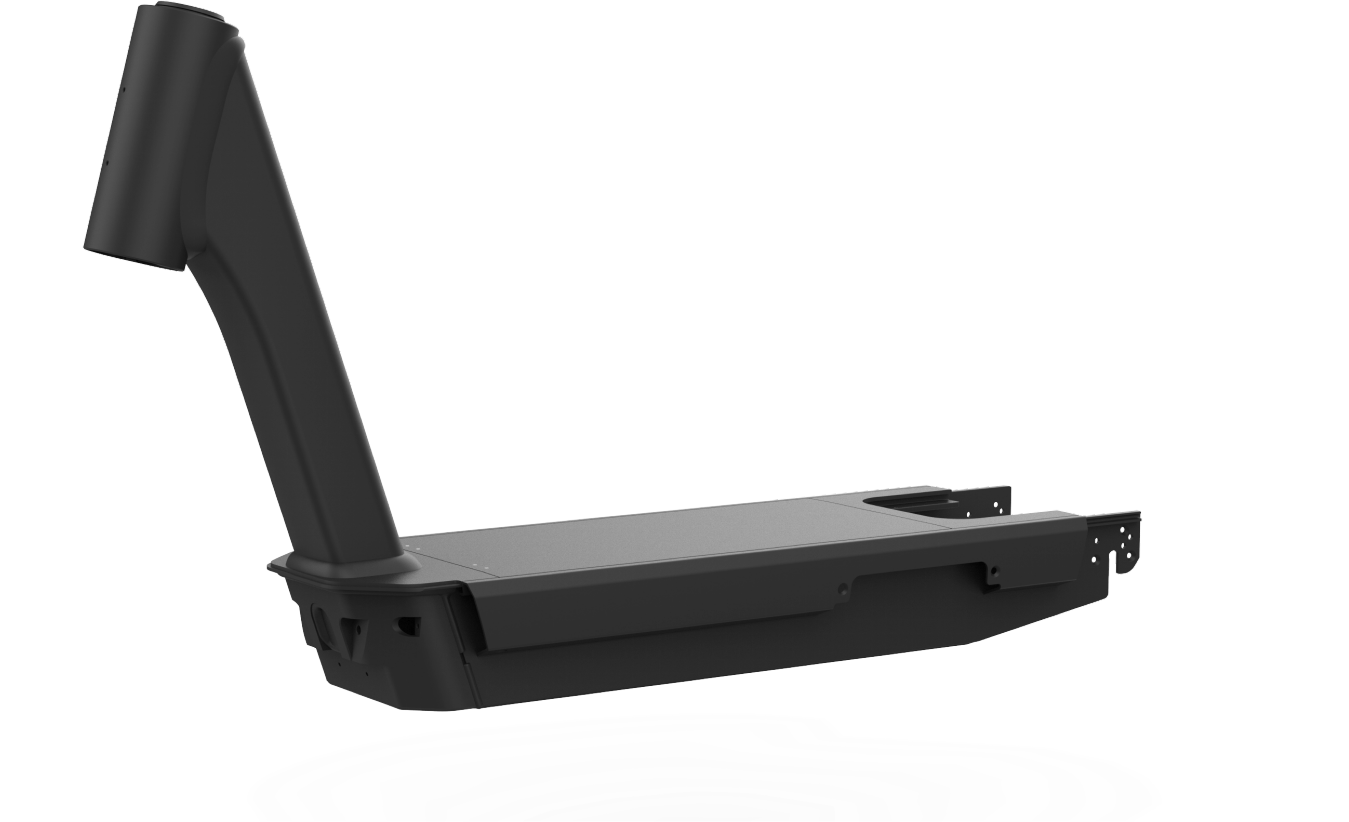

Reinforced and Lightweight Frame Design
- The new frame design enhances durability and cost efficiency.
- Incorporate a hidden lifting handle on both sides of the frame for easier vehicle transport.
- Rigorous testing: passed 1 million vertical dual fork vibration cycles and a load drop fatigue test with a 100 kg load over 3,000 cycles.
Built For Durability
Exceptional Waterproof Rating
Boosts Vehicle Durability in Use
Built for Durability

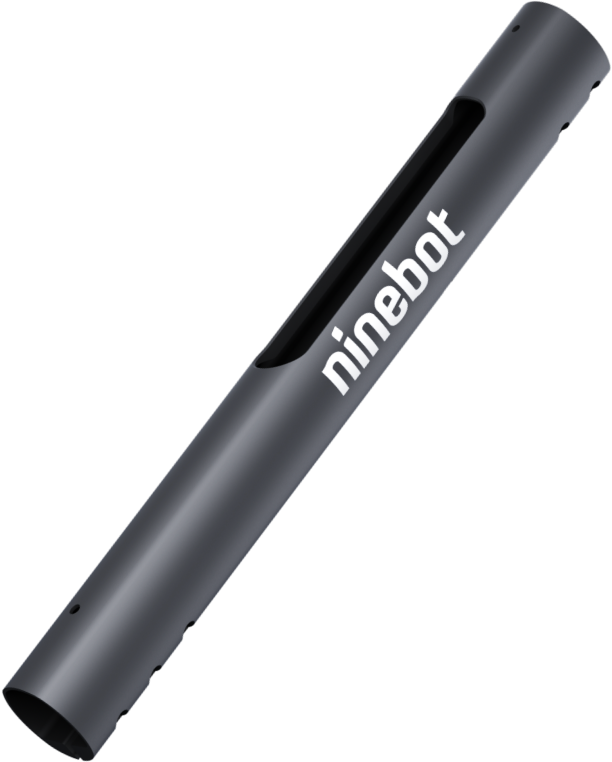

High-Strength Stem for Safety and Reliable Ride
The D110L features a 7000 series aluminum stem with an optimized structure that has passed rigorous testing. It has been subjected to a thrust force of 600N over 1,000,000 times, offering the highest levels of safety and durability.
7000
Series Aluminum Stem
600N
Thrust Force
1M
Times of Test
Built for Durability
Rigorous Testing Standard
Tests | Test Standard |
|---|---|
Side fall test | 1200 cycles |
No-load free-fall drop test | 1.5m with 15 cycles |
Load 100kg drop test | 15cm with 3000 cycles |
Static pressure test | 1000kg with 24H |
Horizontal impact test | 500J with 10 cycles |
Roller test | 12±1km/h, 15mm, 1000km |
Push-pull fatigue test | 600N, 45°, 1million cycles |
Environmental aging test | 85℃, 85%RH |
... |
Built for Easy Maintenance
Easy Maintenance
Consumable parts
Each part replacement takes less than 7 minutes in total, with disassembly completed in under 3 minutes.
Consumable parts Include headlight, taillight, left and right brake lever assembly, handlebar grip, kickstand, bell, charger port, throttle, left and right turn light, turn signal switch，phone holder.
Key electronic parts
Each part replacement takes less than 10min in total, with a disassemble time under 5 minutes.
Key electronic parts include dashboard assembly, controller, IoT, forehead assembly, LED dashboard, wireless charger module, battery cover lock.
Key mechanical parts
Each part replacement takes less than 25 minutes in total, with disassembly completed in under 8 minutes.
Key mechanical parts include front and rear wheel assembly, front and rear fender, front fork, tube, main harness.
Segway Care Commercial
An industry-leading initiative takes customer care to a whole new level.
Key components warranty
12
Months
Spare parts purchase cost
20
Reducing up to
Product Variants
D110L
Split designed dashboard
D110X
Multi-functional dashboard
Product Accessories (optional)

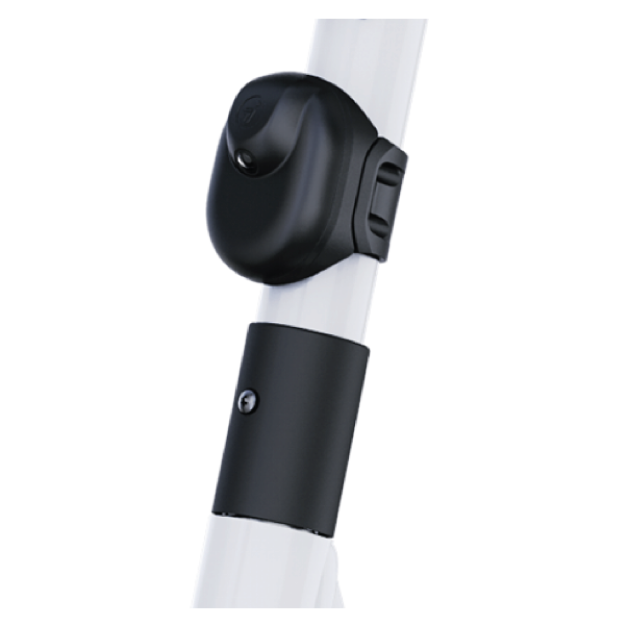

Segway Pilot Lite
Cable lock

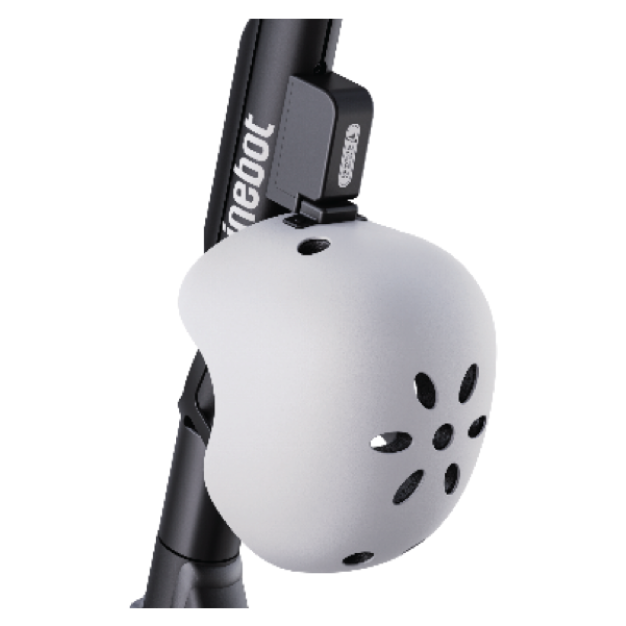

Pre-installed helmet lock
